UHF tour guide system double transmitter system 60DT Horse Riding Instruction Equestrian Sports System

Double transmitter system

Quantity:
  • 60DT
  • Customized


Function:

60DT works as transmitter / receiver / guide speaker.

Matched with 60DTR (transmmitter+receiver) and 60R (earpiece receiver).

It is used in a double transmitter circumstance.

Custom printing is accepted.


This system can be used in tour guiding, training, teaching, translating, conference, etc.

With the technology of strong digital signal, the working range is no less than 500 meters.

With a high capacity of 2500 mAh rechargeable lithium battery,

the continuous working life is no less than 24 hours.


Black 60DT is the main transmitter. It has to be turned on all the time.

60DT can always talk and listen without pressing any button.

One 60DT can work with one or more white 60DTR. Each device in the group can talk and listen.

If one 60DT works with one 60DTR, they can talk to each other without pressing any button.


If one 60DT needs to work with many 60DTR,

we can change the working mode to "Hold and press the button on the mic to talk for all the 60DTR".

There can only be one 60DT in one group. There is no quantity limit for 60DTR in one group.



Specifications:

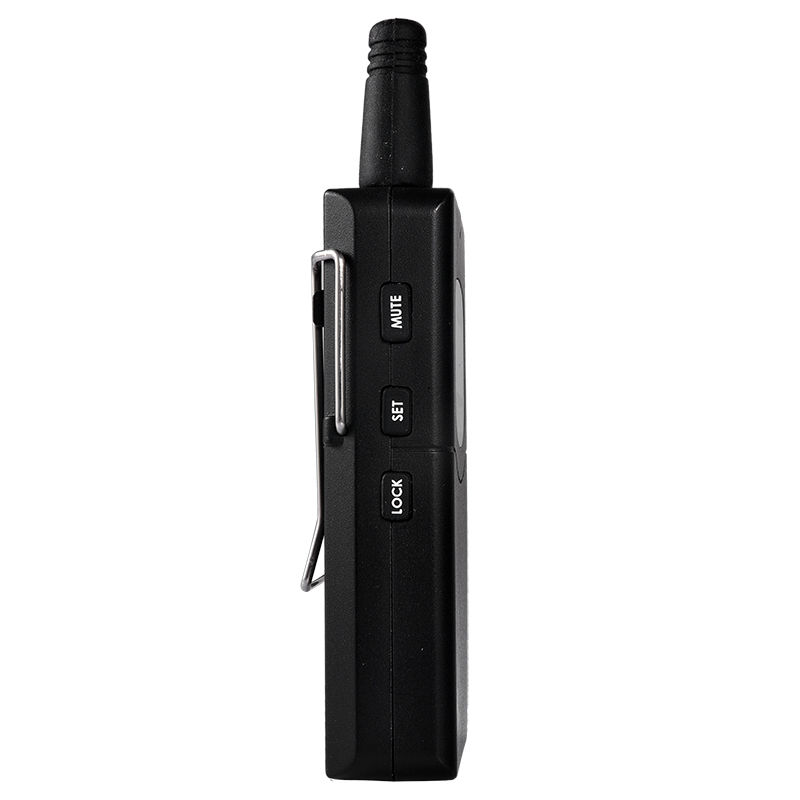

① : Antenna

② : Mute key

③ : Switch between volume and channel

④ : Lock the channel

⑤/⑥ : Change channel and volume


DSC_44411


Parameters:

Working mode: Digital QPSK;  frequency range: UHF (customizable); channel number: 44CH

Channel interval: 1MHz; Transmitting power: 18dBm (MAX); transmitting current: 160 mA

Frequency response range: 20Hz-10KHz; distortion: <1%


Output/input interface: 3.5mm; battery capacity: 2500mAH

Size: 85*50*19mm; weight: 90g

Effective distance: 150m; accessories: microphone and hanging rope
