Tour guide system double transmitter interpreting system receiver 60R

Radio guide system receivers

Quantity:
  • 60R
  • Customized


Function:

60R works as radio receiver for the tourists and audience.

Matched with 60DT (transmmitter+receiver) and 60DTR (transmitter+receiver).

It is used in a double transmitter / interpreting circumstance

when 2 guides speak 2 languages.


Specifications:

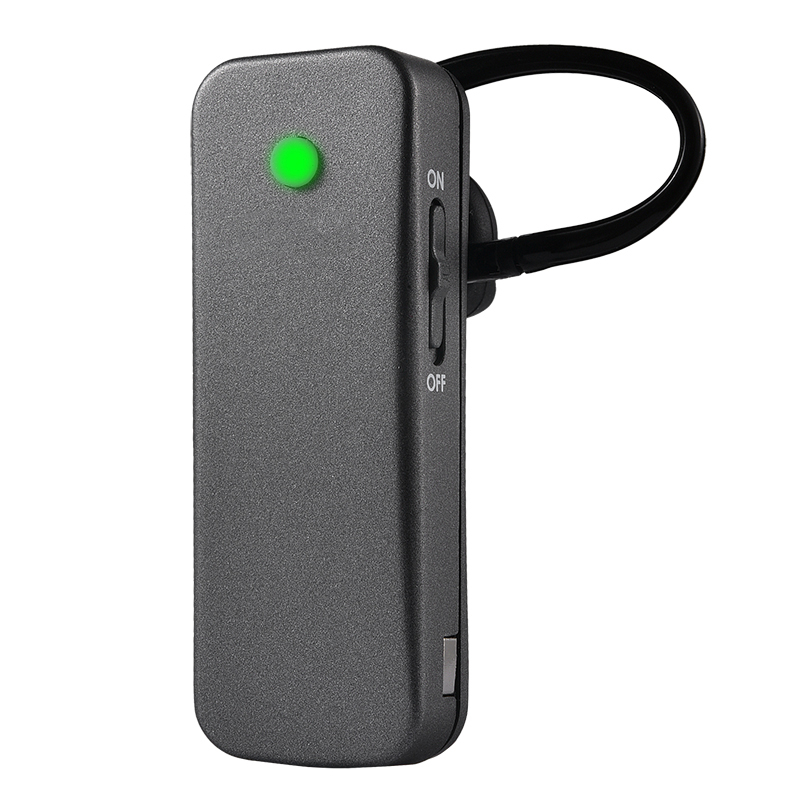

① : Signal light

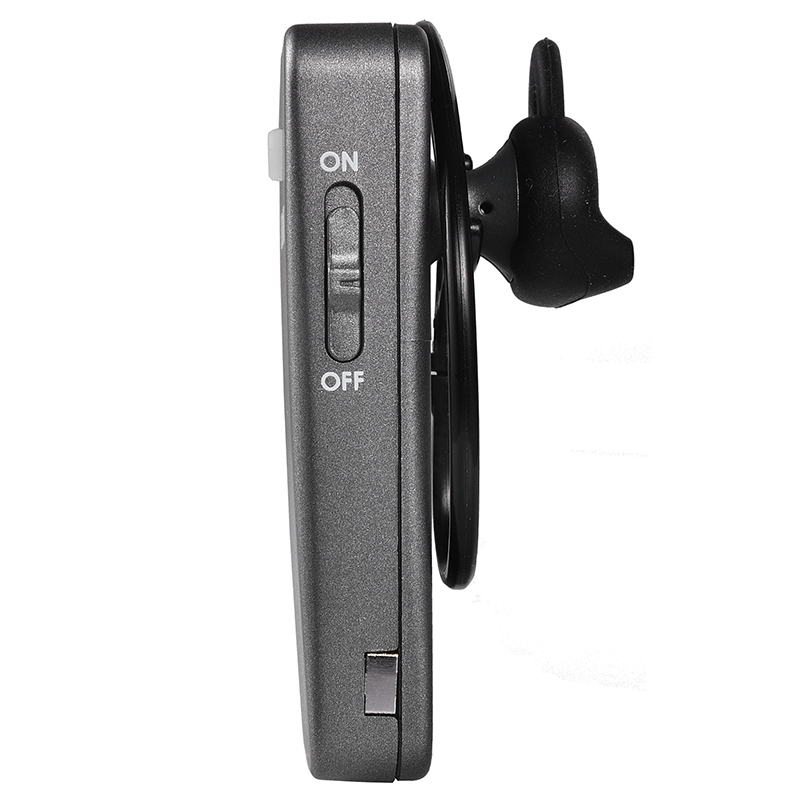

②/③ : Switch on / off


DSC_4288

Parameters:

Working mode: Digital QPSK;  frequency range: UHF (customizable); channel number: 44CH

Channel interval: 1MHz; working current: 40 mA

Frequency response range: 20Hz-10KHz; distortion: <1%


SNR: 100dB; battery capacity: 350mAH

Size: 61*22*9.5mm; weight: 18g
