Display screen video picture audio guide system

Quantity:
  • K6
  • Customized


Item

Specifications

power supply

Lithium battery

charge mode

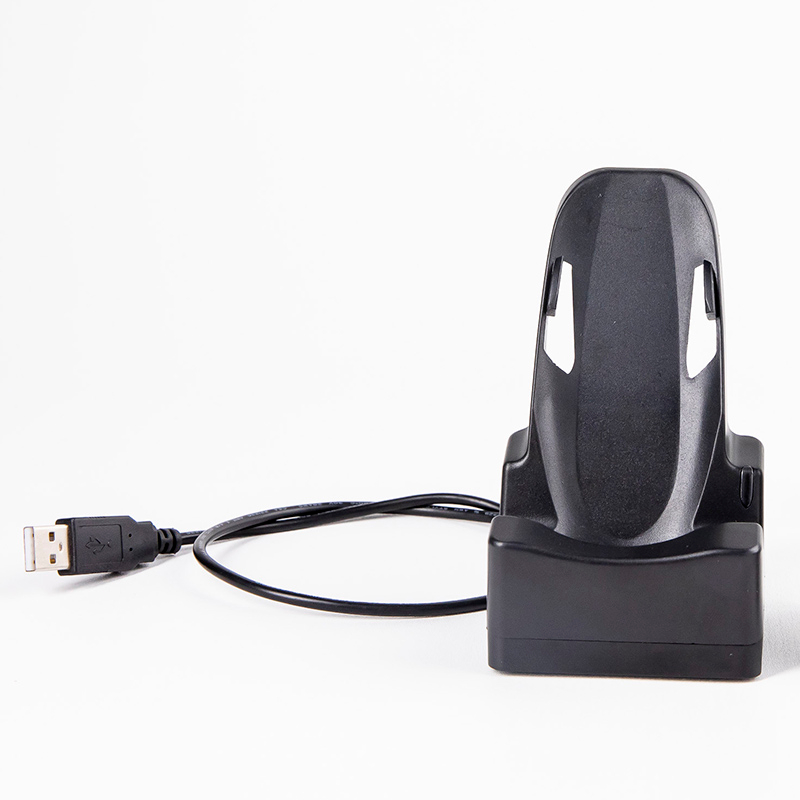

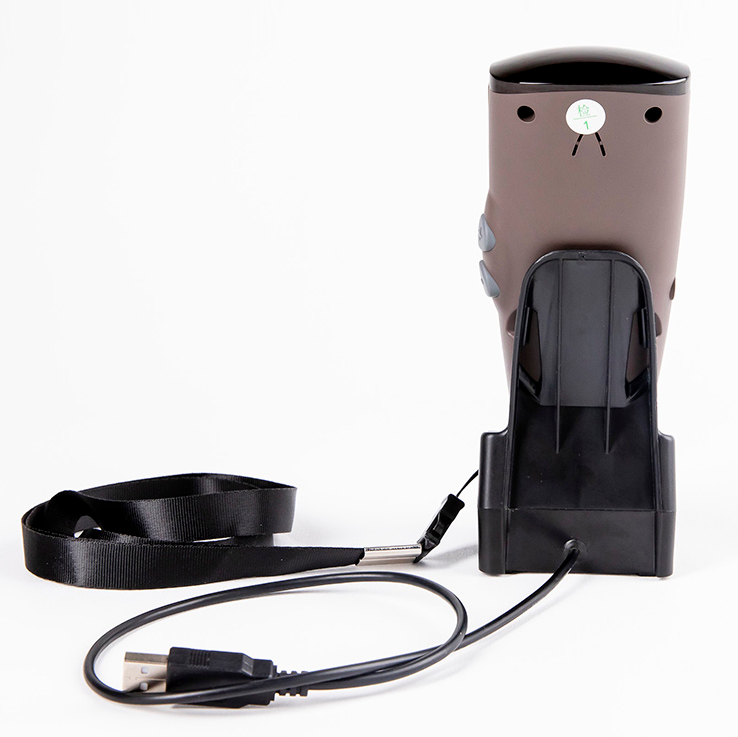

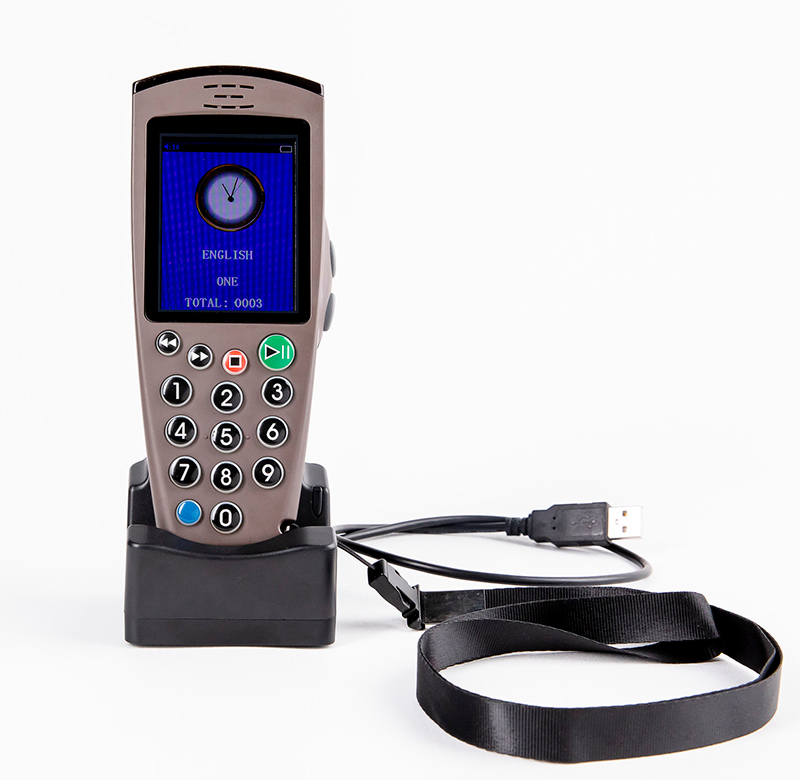

Charging storage box

Charging voltage

4.2V

Operating temperature

-20℃ ~ 45℃

Storage temperature

-20℃ ~ 60℃

Storage Humidity

10% ~ 70% relative humidity

Size

165×68×27mm

Weight

195g

Color

Gray

Volume

0—31


1) Fully automatic play function:

the audience carries the audio guide device into the exhibition area,

and the audio guide device automatically plays the corresponding audios without manual operation;

2) Video-on-demand function: with 0-9 digital number keyboard,

visitors can choose to listen to different audios by pushing different numbers.

3) It has one built-in earphones, two external earphones with two earphone jacks;

two visitors can use one device at the same time;

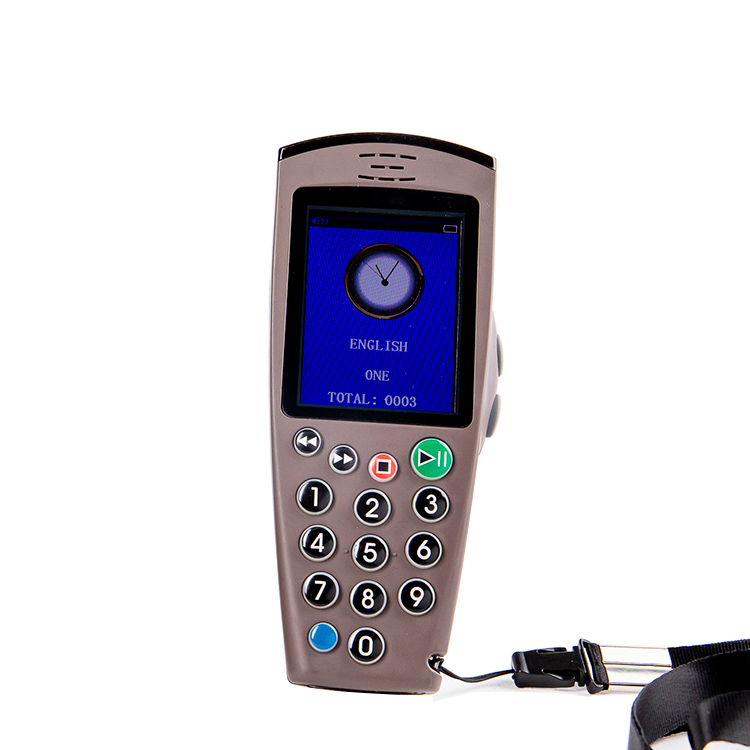

4) The display screen is a TFT true color LCD screen,

which can display pictures and videos in a size of 2.8 inches;

5) Device can show the name of the exhibit and the presentation at the same time;

it has a variety ways of presentations, such as audio,video, audio with description words,

audio with pictures; freely choose the presentation method;

6) Button functions: play/pause, fast forward and rewind in the device,

quick selection of the previous paragraph, the next paragraph, independent volume adjustment keys;


7) More than 9 languages can be played in the device; total audio time is more than 60 hours;

8) Built-in lithium battery; continuous working time more than 10 hours;

9) High-speed USB2.0 interface; users can easily modify the presentations as needed;

10) 30mm diameter large size speaker; the sound is loud and clear,

and the outdoor use effect is better;


11) Micro SD card is compatible, which has 16GB storage capacity.

12) It is equipped with a charging and disinfecting integrated cabinet,

which is beneficial to the health of the audience;

13) BLE 4.0 low power bluetooth location function;

14) Bluetooth calibration and setting function;

high positioning accuracy and good consistency;

15) Compatible with Apple iBeacon,

it can receive ibeacon transmitter signals installed in the visiting area;

All functions are fully integrated by a single device.
