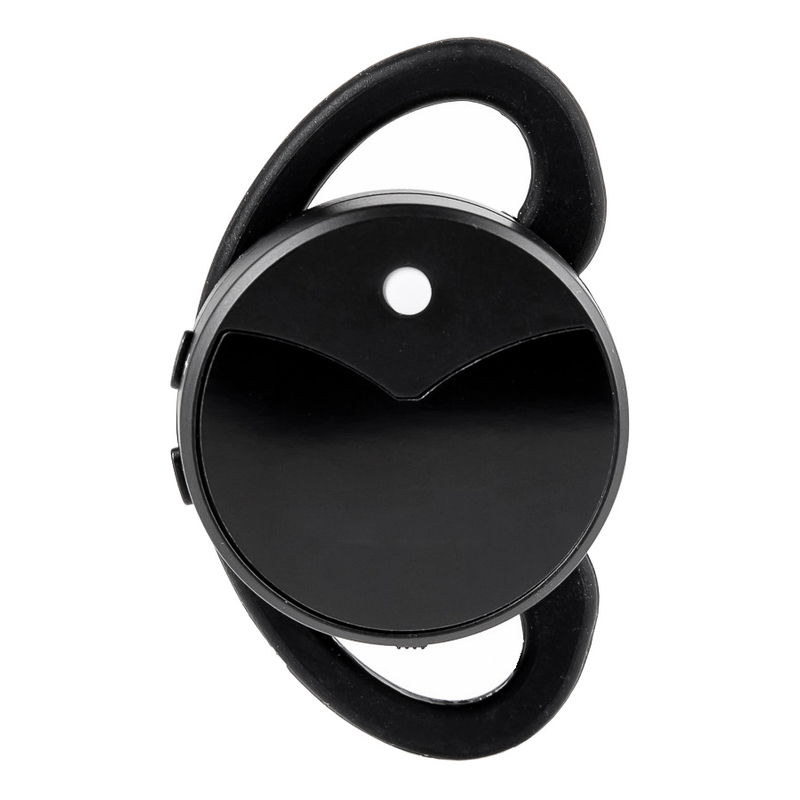

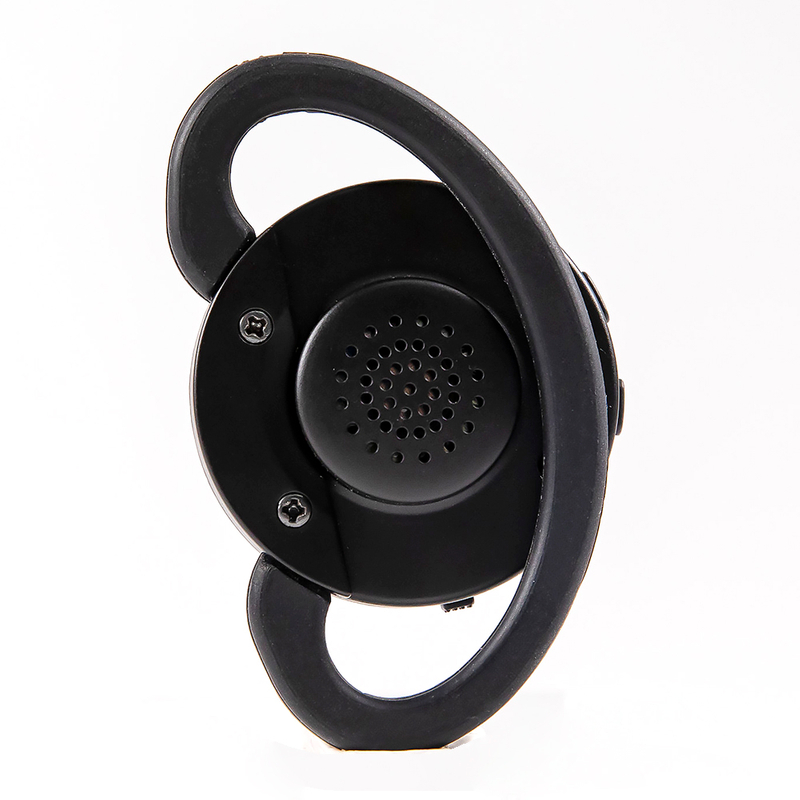

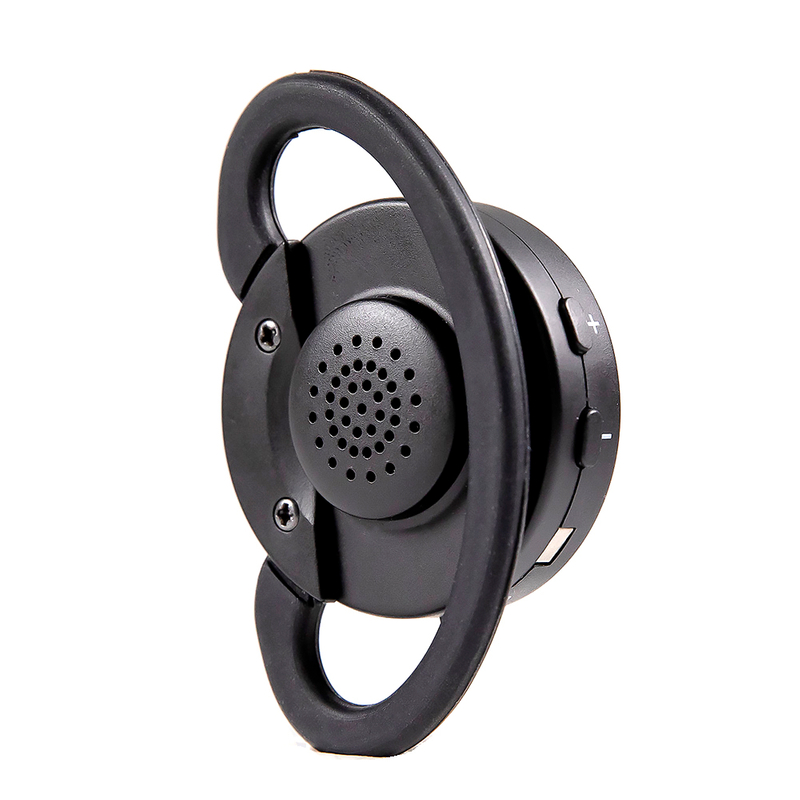

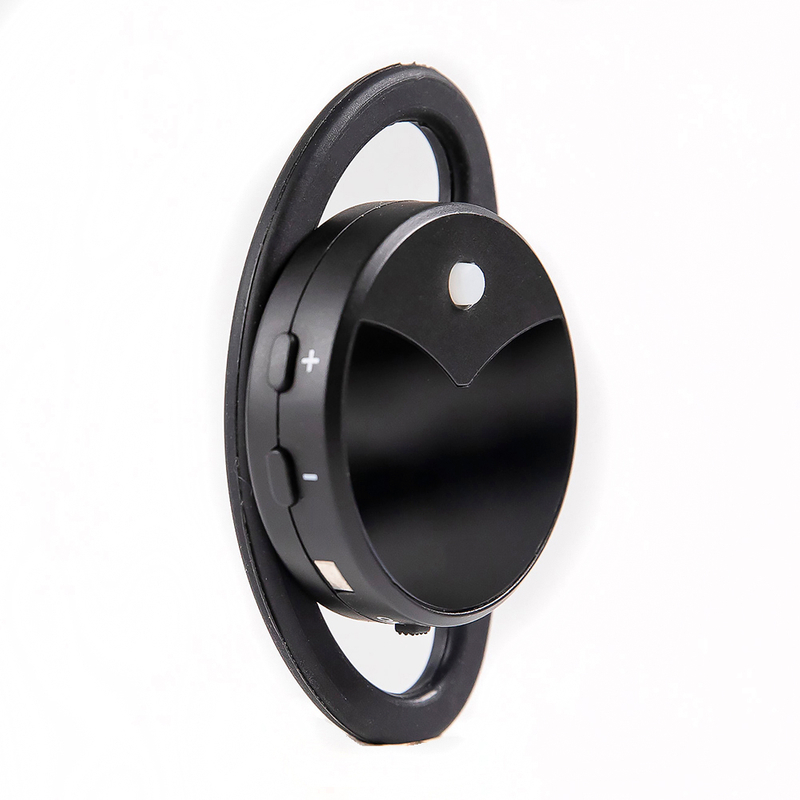

Auto-trigger audio guide system audio player earpiece receiver

Earpiece receiver for the tourists and audience
  • K7

  • Customized


Auto-trigger audio guide player is used in many kinds of tourist spots.

The audio files in the device will be played automatically within a certain distance of the trigger.

The audio file numbers and triggering distance is set on the trigger.

Tourist can choose their own language in the device.

The device storage capacity:  512M


1. Channel choose: Press and hold key "+" and turn on the device.

2. Volume change: Use VOL + / - to change volume.

3. Language change: press flashing light to change language.

4. Light flashes blue 3 times per second: device is triggered accordingly and working.

5. Light flashes blue 1 time per 5 seconds: device is not triggered.

6. Light flashes red 1 time per seconds: device is triggered by another new trigger.

7. Red light keeps on and blue light flashes: the audio number set in the trigger is invalid.

  Purple light keeps on: low battery.

8. Upload the languages and audios to the device before use.

   Create new folders for each language; name the folders with capital English name of the language.

   Language folder name request: capital English letters, as: ENGLISH, SPANISH, CHINESE, etc.

   Upload different language audios to different language folders.

9. Audio file name request: one capital English letter + three Arabic numbers:

  The capital English letter must be same as the first letter of the language.

  Audio file names as: E001, E002, E003, S001, S002, S003; C001, C002, C003.

Only after setting the language folder names and audio file names as above,

the audios can be played accordingly.


Working mode: Digital QPSK;  frequency range: UHF (customizable); channel number: 44CH

Channel interval: 1MHz; working current: 40 mA

Frequency response range: 20Hz-10KHz; distortion: <1%

SNR: 100dB; output/input interface: built-in speaker; battery capacity: 350mAH

Charging current: 260mA; weight: 17g; Diameter: 45 mm

Effective distance: 150 meters
