UHF tour guide system translating system transmitter and receiver 60DTR

  • 60DTR
  • Customized


60DTR works as both transmitter and receiver.

Matched with 60DT (transmmitter+receiver) and 60R (earpiece receiver).

It is used in a double transmitter circumstance.

60DTR can be used for transmmitter and receiver.

And all the devices in this system can talk to each other.

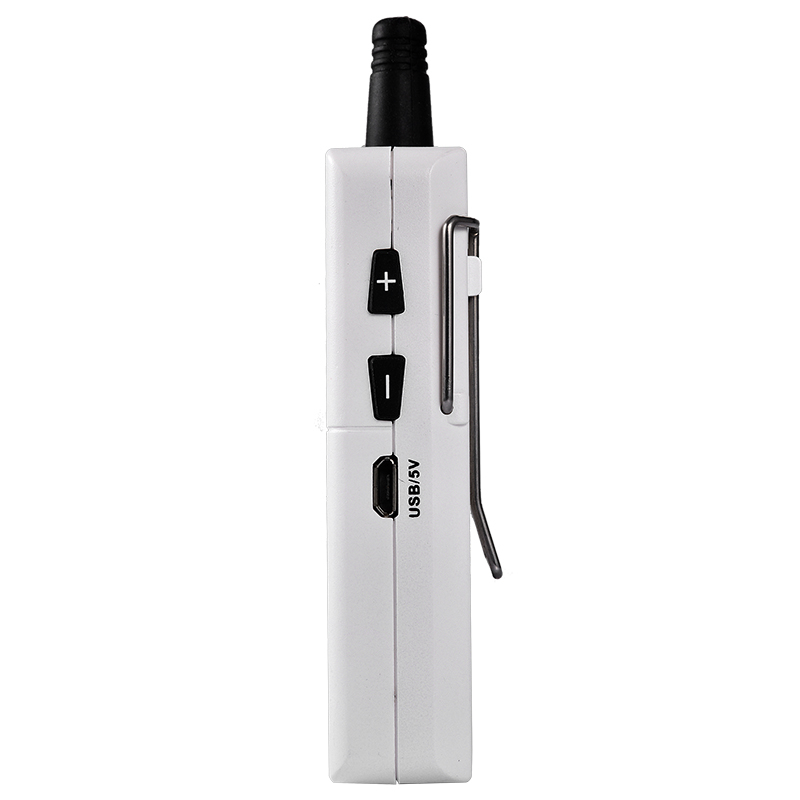

① : Antenna

 : Mute key

③ : Set between volume and channel

④ : Lock the channel

⑤/⑥ : Change channel and volume



Working mode: Digital QPSK;  frequency range: UHF (customizable); channel number: 44CH

Channel interval: 1MHz; Transmitting power: 18dBm (MAX); transmitting current: 160 mA

Frequency response range: 20Hz-10KHz; distortion: <1%

Output/input interface: 3.5mm; battery capacity: 2500mAH

Charging current: 400mA; size: 85*50*19mm; weight: 90g

Effective distance: 150m; accessories: microphone and hanging rope
